DC PANEL METER






Model:

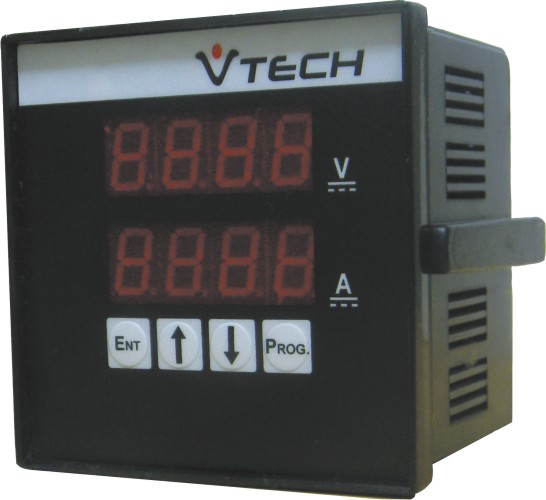

VADC : Measure & display Voltage & Current only

DCUCR : DC Under Current Relay

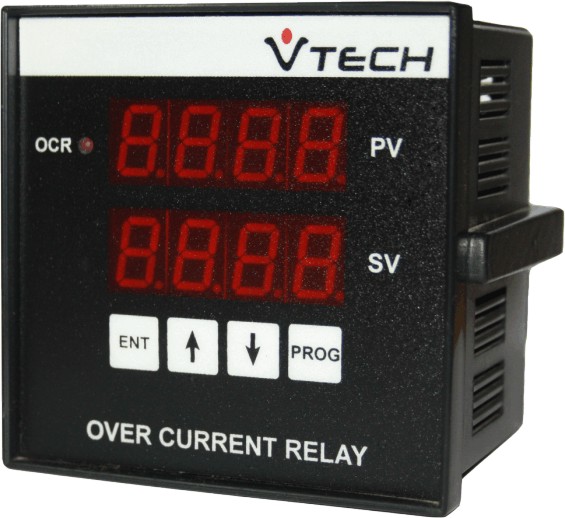

DCOCR : DC OVER Current Relay

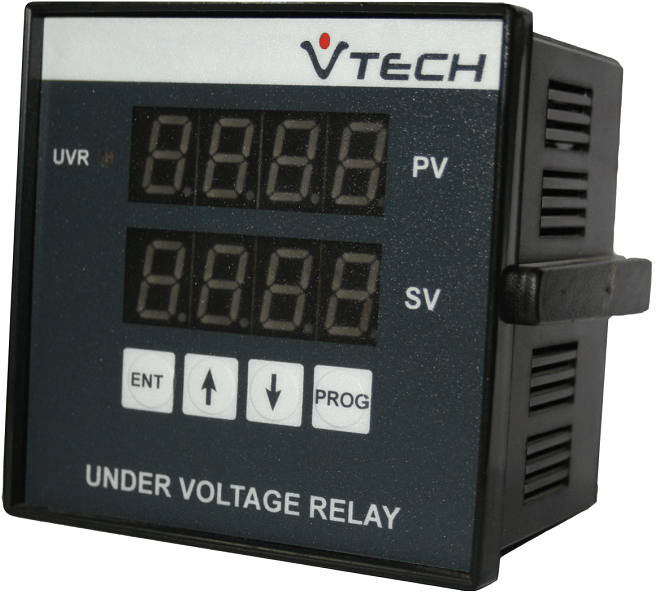

DCUVR : DC Under Voltage Relay

DCOVR : DC OVER Voltage Relay

DCCSR : DC Under & Over Current Sensing Relay

DCVSR : DC Under & Over Voltage Sensing Relay

Features:

State of Art Microcontroller Based Design

Dual Line 4 digit Super Bright Seven Segment Display

4 Keys keypad for program mode

On site Current & Voltage Calibration

Shunt ratio for current is user programmable

Two change over relay output for Over/Under Current Relay & Over/Under Voltage Relay

Specifications:

Aux. Supply: 230/110 VAC , 50/60 Hz (+/- 10 %)

System: 1 Phase

Voltage Input: 600 VDC Max

Current Input: Using External Shunt 0-75 mV

Resolution: 0.1 V for Voltage, 0.1 / 1 Amp depends on shunt ratio

Relay output: Two Change Over , 5 A

Dimension: Bezel - 96 mm x 96 mm, Depth - 65 mm, Panel Cutout - 92 mm x 92 mm
