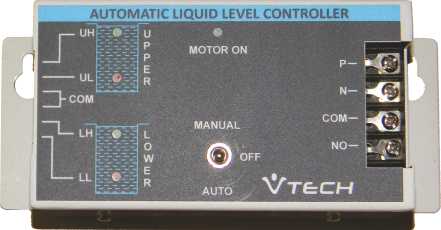

AUTOMATIC LIQUID LEVEL CONTROLLER
Model:
ALLC : Automatic Liquid Level Controller
Description:
This model switches ON your motor when there is no
water in your overhead tank and also switches OFF when tank is full. If the motor is in ON mode
and the water level in sump is low, it switches OFF automatically and only when there is
sufficient water in your sump it switches ON. Thus protecting the motor from running DRY.
Features:
State of Art Microcontroller Based Design
Adaptable to tank of any type
Compact & elegant design
Easy Installation
Increase Pump life, Avoid overflow of water, Dry running of pump set & there
by prevents wastage of electrical energy
Avoids seepage of water from roofs & walls due to over flowing tanks
Built in water level Indication for High level & Low level for both upper & lower tank
Auto / Off / Manual mode selection switch
Motor On / Off indication
Specifications:
Aux. Supply: 230 VAC, 50/60 Hz (+/- 10 %)
Relay output: One Change Over , 30 A , Potential free NO contact
Sensors : Rod type 6 sensors
Auto / Off / Manual : Bypass switch
