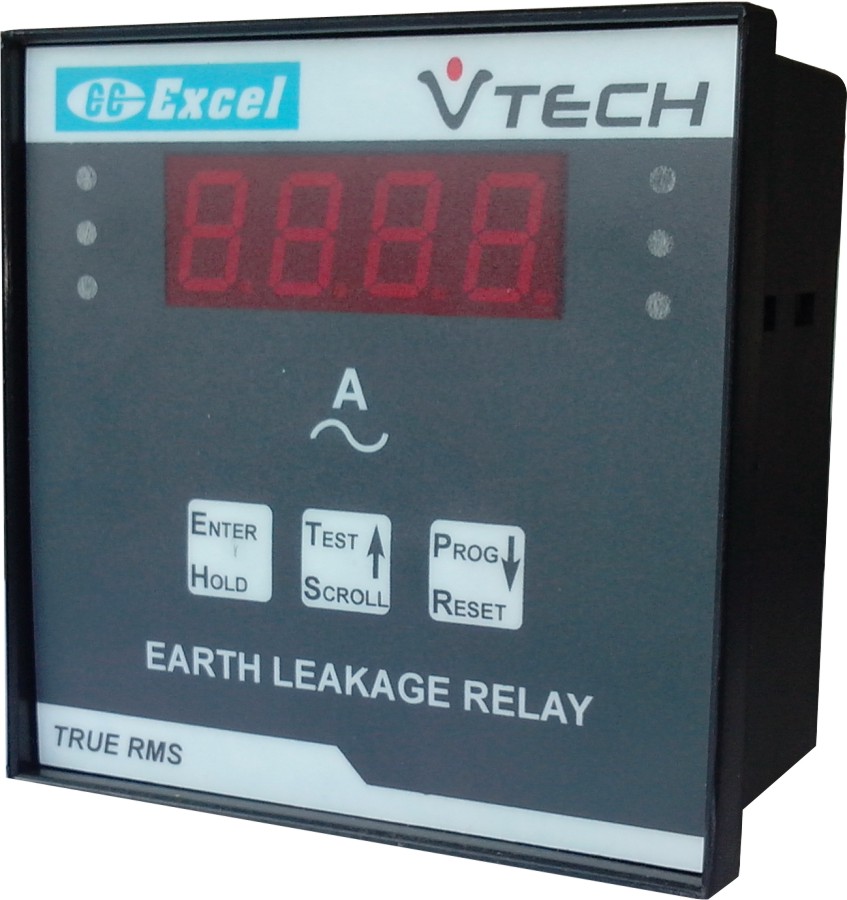

EARTH LEAKAGE / FAULT RELAY

Model:

ELR : Earth Leakage Relay (With Display)

EFR : Earth Fault Relay (Without Display)

Features:

State of Art Microcontroller Based Design

4 digit Super Bright Seven Segment Display

3 Keys keypad for program mode

Specifications:

Aux. Supply: 230 VAC , 50/60 Hz (+/- 10 %)

System: 1 Phase

Range For Model ELR: 3 mA to 30 mA, 30 mA to 300 mA, 0.1 A to 9.99 A, 1 A to 99.9 A

Current Input: Through Current Transformer

Range For Model EFR: CT Secondary Current Input 5 A (10 % to 100 %)

Resolution: Depends on Current sensing Range

Relay output: One Change Over , 5 A

Dimension: Bezel - 96 mm x 96 mm, Depth - 65 mm, Panel Cutout - 92 mm x 92 mm
