THYRISTOR BASED PHASE / HEATER CONTROLLER

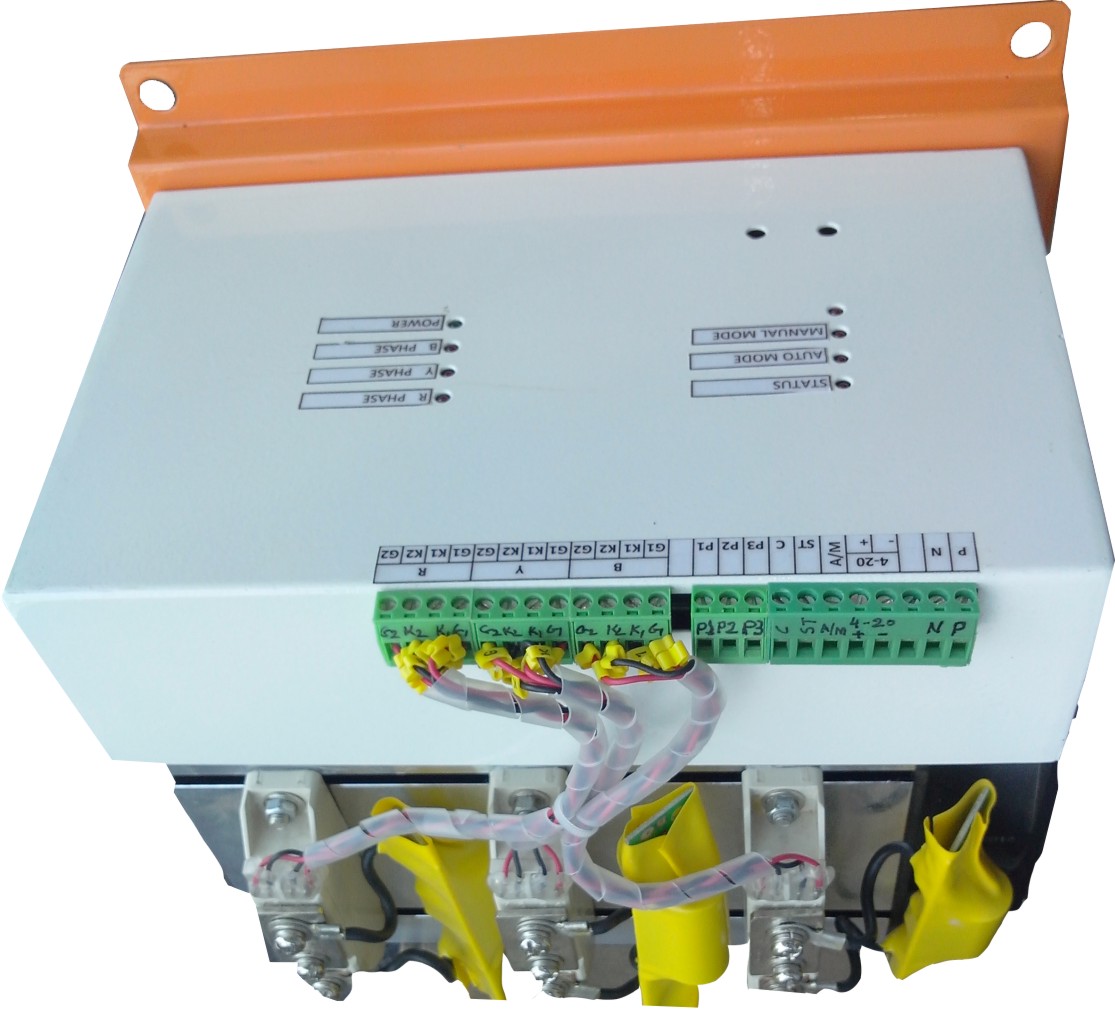

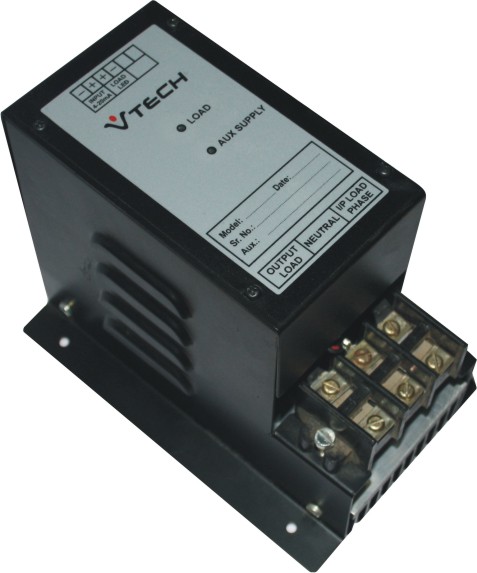

            Single Phase                                                      Three Phase

Model:

1-PHASE : Single Phase Heater Controller

3-PHASE : Three Phase Heater Controller

Description:

Equipment manufacturers and maintenance engineers need a reliable, flexible approach to controlling electric-heating processes in today’s competitive, cost-conscious industrial environment

SCR (silicon controlled rectifier) power control offers advantages including precise control of the heating process, extended heater life, improved product quality at faster production speeds and reduced maintenance costs

Proper selection of an SCR power control can result in many years of reliable service

Comparing Power Control:

A silicon controlled rectifier is a solid state switching device that can provide fast, infinitely variable proportional control of electric power an SCR can cycle as fast as 0.08 seconds on a 50 / 60-Hz power line

With proper selection and use, an SCR power control can cycle on and off 1,000,000,000 times without any problems

Unlike a mechanical relay or contactor, an SCR power control has no mechanical parts to wear out

Benefits:

Reliable solid states switching of high current loads

Improves heater life by minimizing thermal cycling

Improves control accuracy with virtually no switching hysteresis

Features & Specifications:

1 Phase, 3 Phase units are available

Up to 1000A

Control method : Burst & phase angle firing modes

RC snubbers included for transient voltage protection

Aux Supply: 230V AC, 50 Hz

Control input signals: 4-20 mA / 0-10VDC / 0- 5 VDC

Isolated from high voltage

Internal overheat protection (optional)
